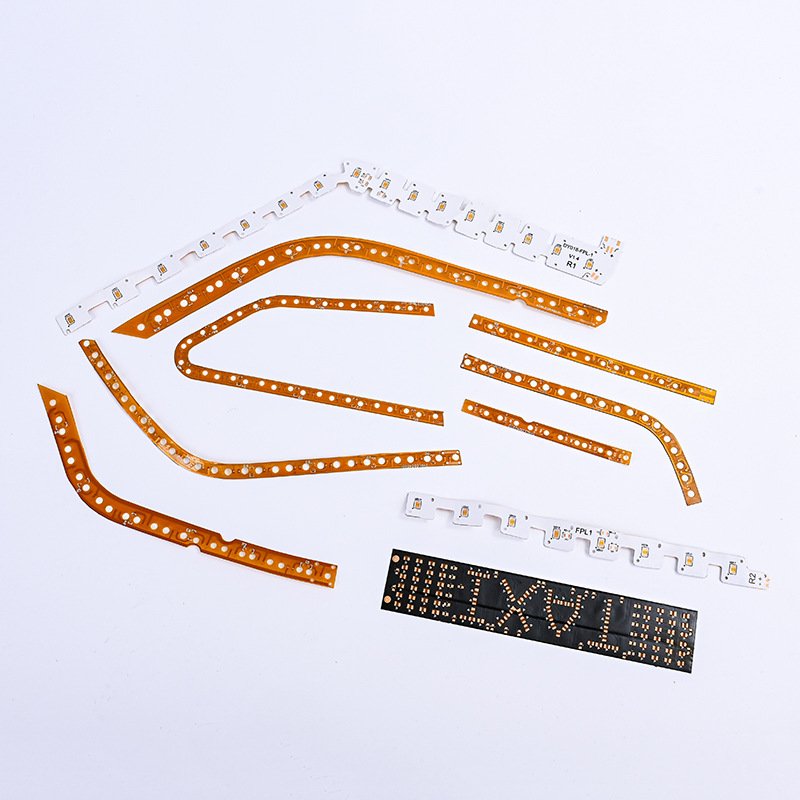

Automotive Electronics

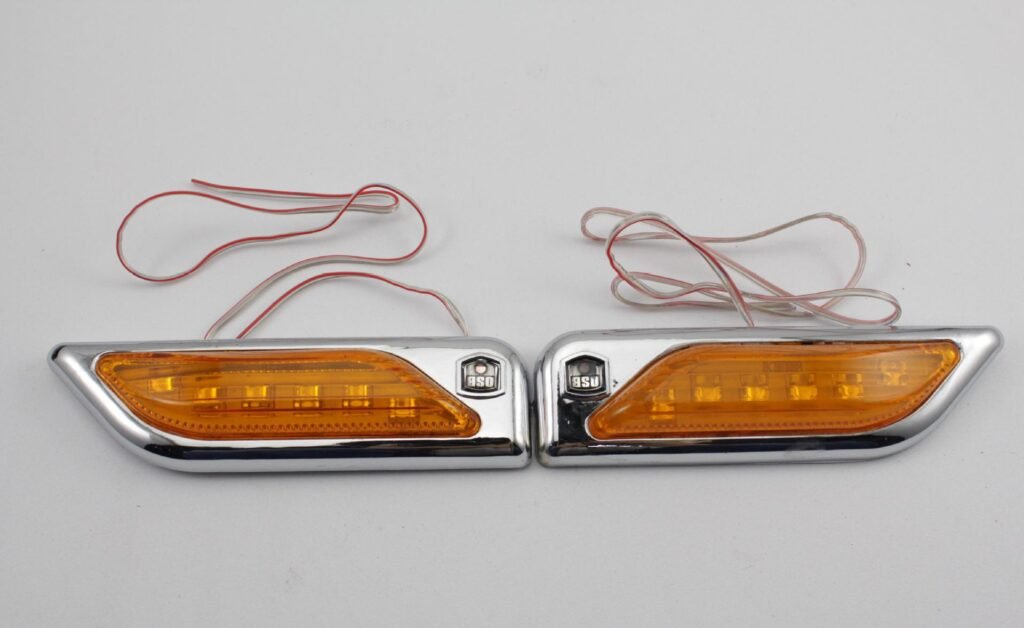

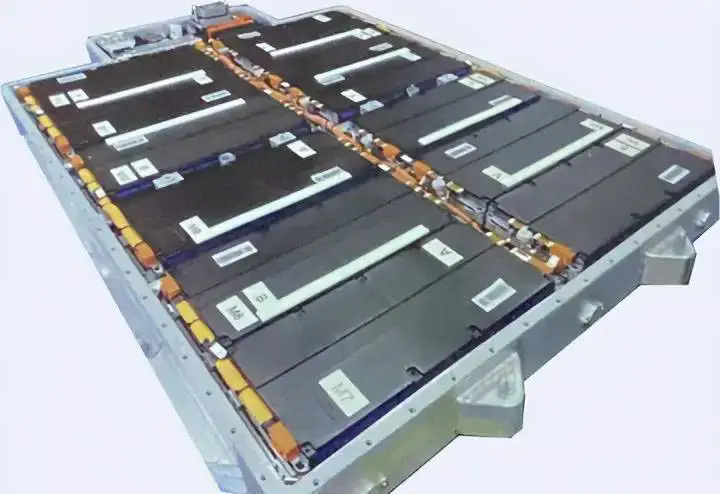

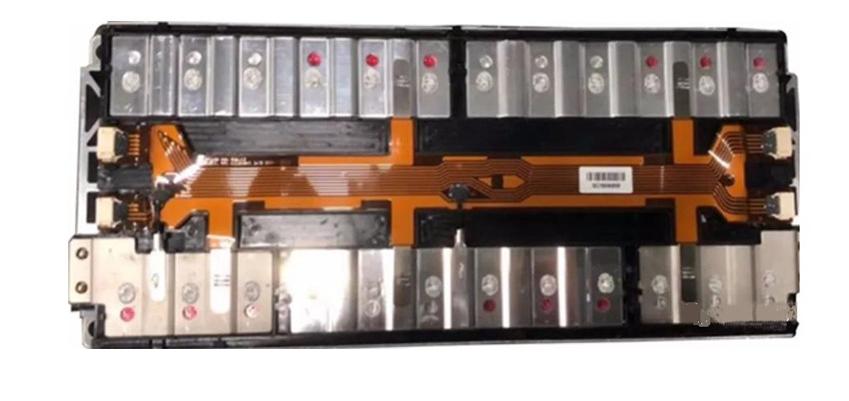

Widely used in: Infotainment Systems, Instrument Clusters,Advanced Driver-Assistance Systems (ADAS),Head-Up Displays (HUDs),Lighting Systems, Battery Management Systems (BMS)
Get your Automotive Electronics Solution

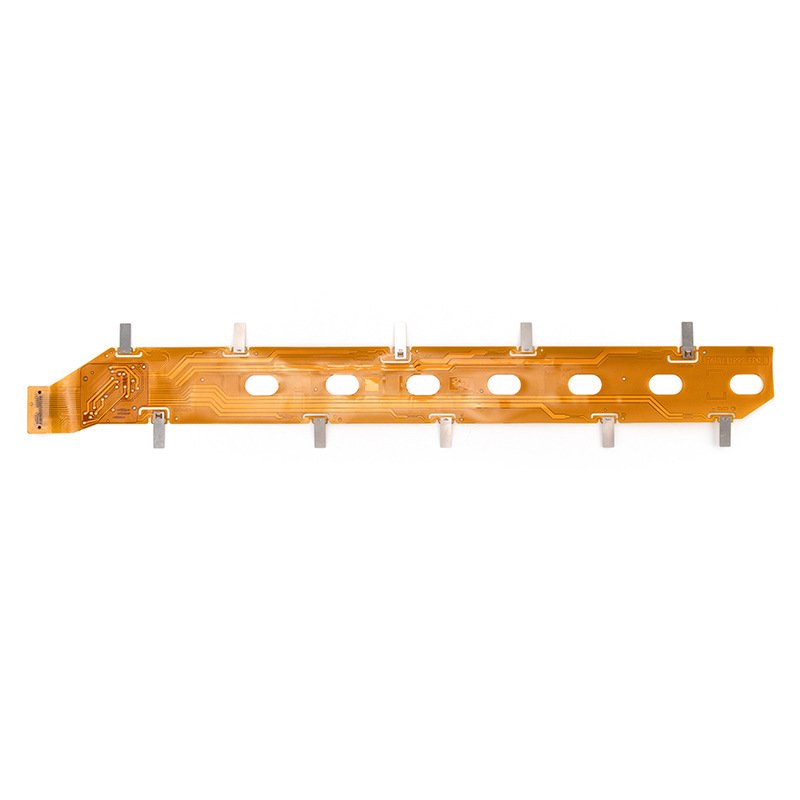

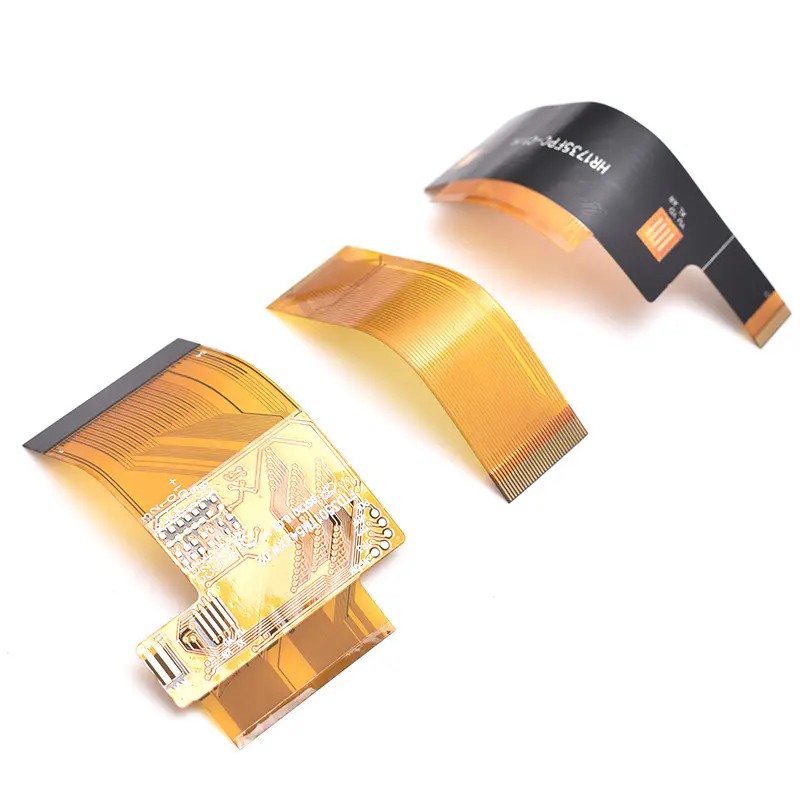

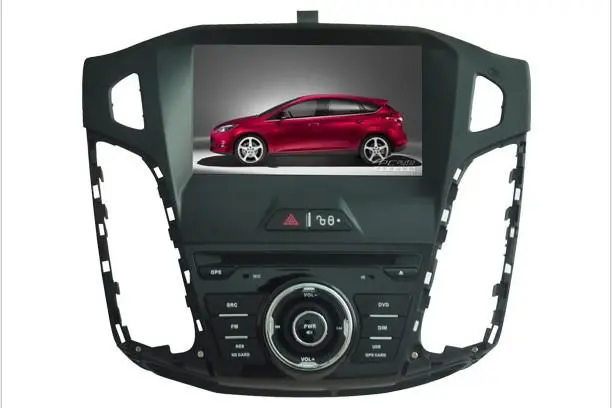

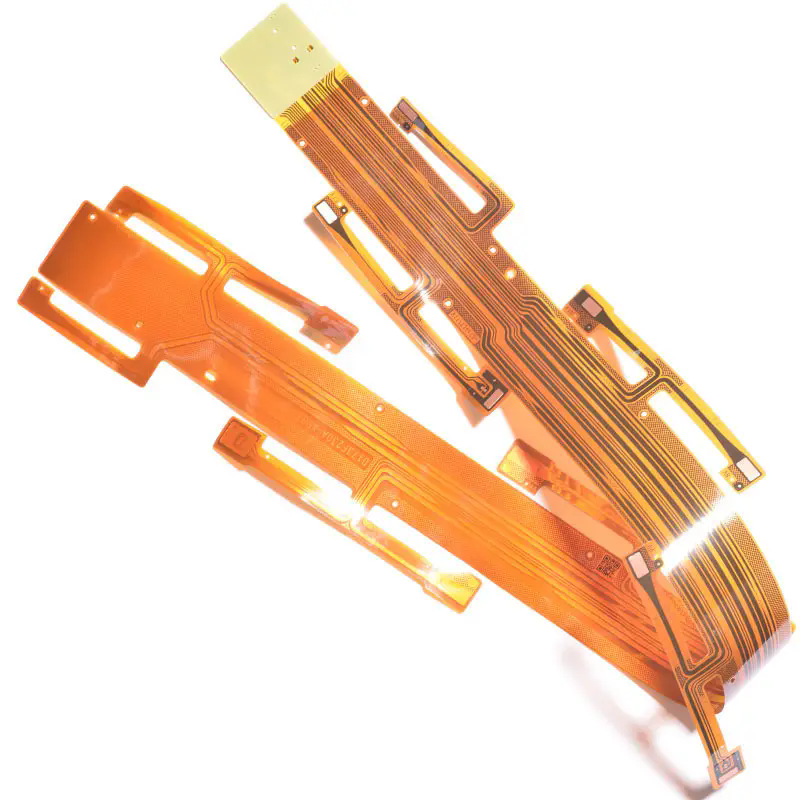

Flexible PCBs are used in car infotainment systems, providing the flexibility to fit into complex, compact designs while ensuring reliable performance for audio, video, and navigation functionalities.

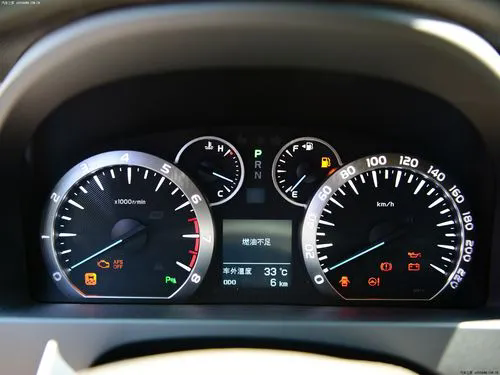

In modern digital instrument clusters, flexible PCBs allow for the integration of multiple displays and controls within a limited space, enhancing the driver’s interface experience.
Flexible PCBs are crucial in ADAS, supporting cameras, sensors, and radar systems that help with collision avoidance, lane departure warnings, and adaptive cruise control.
Providing durability, space efficiency, and reliable connectivity for automotive electronics.
Offering high flexibility, durability, and efficient connectivity in compact spaces.
Our Specialized Services
Tailored for Your Needs
Specialized and specific, our services are customized to meet your precise requirements, ensuring professional and reliable results every time.
Flexible PCBs enable smaller, more compact device designs, crucial for space-limited medical applications.
Flexible PCBs can endure bending and flexing, essential for wearable and portable medical devices.
High-quality materials and precise manufacturing ensure your devices perform reliably under demanding conditions.
Flexible PCBs can be shaped to fit unique designs, allowing for innovative and standout medical devices.
The thin, flexible nature of these PCBs reduces the overall weight of medical devices, enhancing patient comfort and ease of use.
The flexibility of these PCBs allows for more efficient signal transmission and reduced interference, improving overall device performance.
Capability
Item | Production |

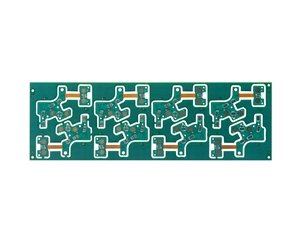

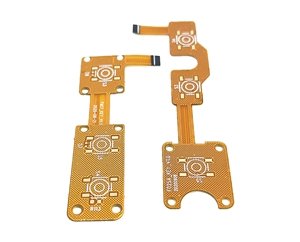

Types | Single-sided, Double-sided, Layered, Hollow, Multi-layer |

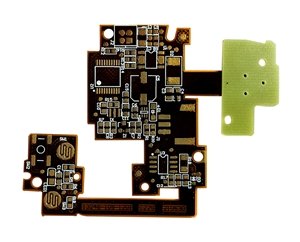

Layer Count | 1-12 layers for flexible circuits 2-16 layers for rigid-flex circuits |
Board Dimensions | 250*4000mm |
Board Thickness | 0.06-0.4mm for flexible circuits 0.25-6.0mmfor rigid-flex circuits |
Minimum Trace Width/Spacing | 0.045/0.045MM |
Copper Thickness | 12UM 18UM 36UM 70UM |
Insulation Layer Thickness | 12.5UM 25UM 50UM |
Minimum Drill Hole Size | CNC Drilling: 0.15 mm Laser Drilling: 0.1 mm |
