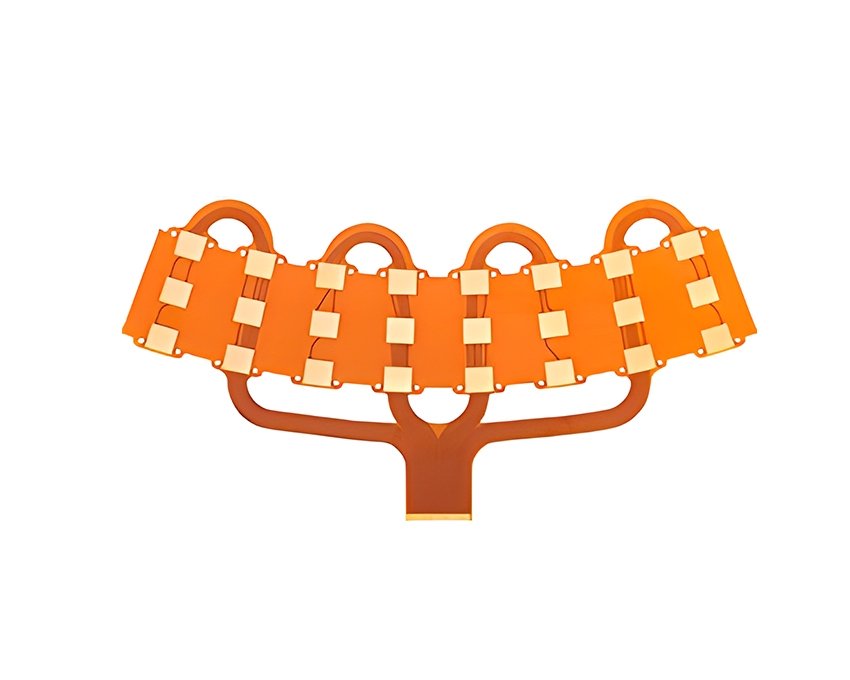

How to Audit a Flex PCB Factory: A Comprehensive Guide
Auditing a flexible circuit board (Flex PCB) factory is essential for ensuring product quality, reliability, and adherence to industry standards. Flex PCBs are increasingly used in advanced applications, where flexibility, durability, and precision are critical. In this guide, we’ll walk you through the key steps in auditing a Flex PCB factory, covering everything from the production process to equipment, certifications, and red flags to watch for.
Why Auditing a Flex PCB Factory is Crucial?
Auditing a flexible circuit board (Flex PCB) factory involves a comprehensive review of the manufacturing process, critical equipment, certifications (such as ISO 9001 and IPC standards), and compliance with environmental regulations (like RoHS). Flex PCB production requires unique materials and meticulous handling to ensure that each board meets the necessary quality and reliability standards. A thorough audit helps identify risks and optimize production practices, ensuring the factory delivers top-tier products.
The Flex PCB Manufacturing Process: What You Need to Know
Understanding the flex PCB production process is the foundation of a successful audit. Here’s a breakdown of the major steps involved, each requiring precise control:
- Material Preparation:
- Flex PCBs are built on polyimide substrates, chosen for their flexibility and heat resistance. Ensure that the factory uses certified, high-quality materials and verify their thickness and uniformity.
- Photolithography and Etching:
- The circuit patterns are transferred onto the copper-clad substrate using photolithography, followed by etching to remove excess copper. Flex PCB materials are delicate, so proper handling is essential to avoid warping or stretching.
- Lamination and Layer Stacking:
- In multi-layer flex PCBs, layers of polyimide and copper must be perfectly aligned during lamination. Audit the temperature and pressure controls during this process to ensure a smooth, defect-free bond.
- Drilling and Via Formation:
- Laser drilling is used to create micro-vias that connect different layers of the PCB. Check that the factory uses regularly calibrated machines to ensure accurate drilling, as any misalignment could lead to connection failures.
- Coverlay Application:
- A coverlay (a flexible protective layer) is applied to shield the circuits from damage. This step is critical for durability—misalignment or air bubbles can compromise the board’s integrity.
- Solder Masking and Plating:
- A solder mask is applied to protect certain areas during component assembly. Plating may also be done on exposed copper areas to prevent oxidation. Ensure proper thickness and application consistency.
- Final Testing and Inspection:
- After assembly, Flex PCBs undergo thorough electrical testing and Automated Optical Inspection (AOI) to detect any defects like shorts or misalignments. The factory’s inspection system should be capable of identifying even the smallest issues in flex circuitry.
Key Steps to Auditing a Flex PCB Factory
When performing an audit, your goal is to verify that the factory follows best practices at every stage of the process. Here’s a structured approach to follow:
- Material Quality:
- Flex PCBs demand high-quality polyimide and copper foils. Ask for material certifications and check for traceability to ensure they’re sourced from reliable suppliers.
- Process Control:
- Assess how well the factory controls each stage of production. Consistent process control is critical in avoiding defects, particularly during sensitive steps like etching and lamination.
- Environmental Compliance:
- Ensure that the factory adheres to RoHS (Restriction of Hazardous Substances) and other environmental standards. Flex PCB manufacturing often involves chemicals, so check how the factory handles waste disposal and complies with environmental regulations.
- Worker Training and Safety:
- Skilled operators are essential in the flex PCB industry. Evaluate the factory’s training programs to ensure workers are knowledgeable about operating specialized equipment and handling sensitive materials.
Critical Equipment to Inspect in a Flex PCB Factory
The performance of the factory’s equipment plays a major role in product quality. Here’s a list of critical machinery you should check:
- Laser Drilling and Cutting Machines:
- These machines are essential for precision cutting and creating micro-vias. Make sure they are regularly calibrated to ensure consistent accuracy and prevent production defects.
- Lamination Presses:
- Proper lamination ensures that multi-layer flex PCBs are securely bonded. Check the calibration of lamination presses, focusing on pressure and temperature controls, as incorrect settings can lead to delamination.
- Automated Optical Inspection (AOI) Systems:
- AOI systems are used to inspect PCBs for defects. Flex PCBs, in particular, require stringent inspection to catch minor defects that could affect performance. Ensure the AOI system is equipped to handle flex circuits.
- Cleanrooms:
- Contamination can ruin sensitive photolithography processes, so inspect the cleanroom facilities. They should be well-maintained and meet industry standards for cleanliness.
What Certifications Should a Flex PCB Factory Hold?
Certifications are a critical part of the auditing process. Ensure the factory holds the following:
- ISO 9001: This ensures that the factory follows a well-structured quality management system, producing consistent results across batches.
- IPC-2223: This standard is specifically designed for flexible and rigid-flex PCBs, covering design, performance, and inspection guidelines.
- RoHS Compliance: Check that the factory complies with RoHS regulations, ensuring it does not use hazardous substances in production.
Red Flags to Watch Out for During an Audit
While conducting the audit, keep an eye out for common red flags that could indicate problems with the factory’s processes or materials:
- Inconsistent Lamination: Delamination occurs when layers aren’t properly bonded. Check for temperature and pressure logs to ensure the lamination process is consistent.
- Etching Defects: Uneven or incomplete etching can cause circuit shorts or breaks. Ensure the factory regularly calibrates its etching equipment and performs frequent inspections.
- Poor Record-Keeping: Lack of proper documentation on materials, equipment maintenance, or quality checks could suggest sloppy practices that might lead to defects.
- Substandard Materials: Low-quality or uncertified materials can affect the flexibility and durability of the final product. Ensure all materials meet industry standards and are certified.
Sustainability and Environmental Compliance in a Flex PCB Factory
In addition to quality and reliability, modern manufacturers must meet environmental standards. Ensure the factory is committed to sustainability by:
- RoHS Compliance: Verify that the factory avoids hazardous substances like lead and mercury.
- Waste Management: The factory should have a waste management system in place for safely disposing of chemicals used in etching and cleaning.
- Energy Efficiency: Look for signs that the factory is investing in energy-efficient equipment and recycling programs to minimize its environmental impact.
Summary
A successful Flex PCB factory audit involves a detailed assessment of the production process, equipment, and environmental practices. By focusing on material quality, process control, and critical certifications, you can ensure the factory meets the highest standards for producing reliable, high-performance flexible circuit boards. Regular audits also help strengthen supplier relationships, ensuring long-term quality and sustainability in manufacturing.
